產品描述

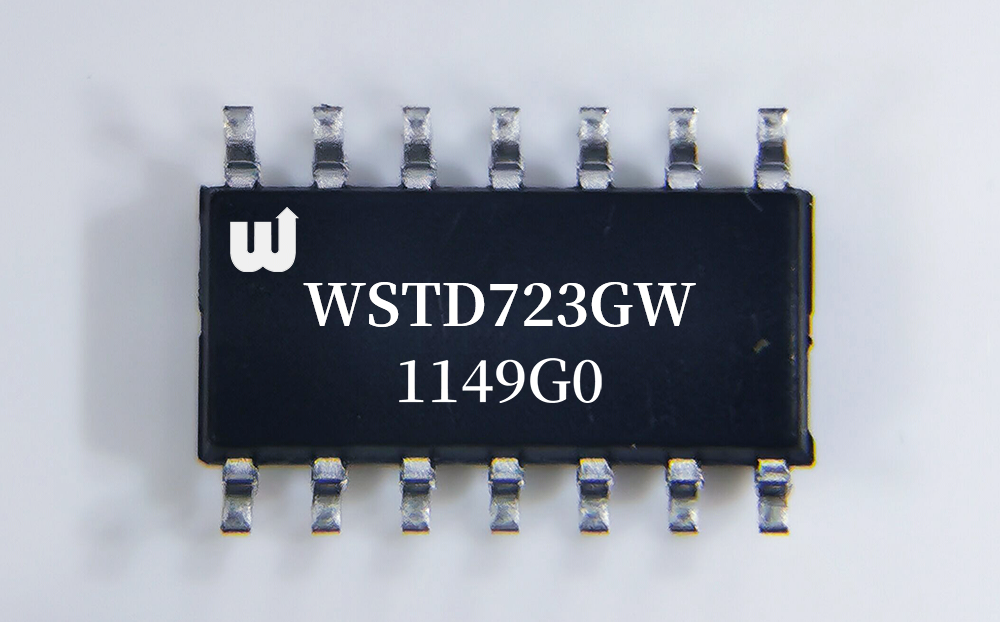

雙通道智能高側驅動開關，70mΩ，SOP-14L，符合汽車電子AEC-Q100 標準

主要特點

Basic Features

• Dual channel device

• Very low stand-by current

• 3.3 V and 5 V compatible logic inputs

• Optimized electromagnetic compatibility

• Fast switching device

• Wide operating voltage range

Diagnostic Functions

• Diagnostic feedback with open drain output and integrated pull up resistors

• Off-state open load detection

• OUT short to VS detection

• Feedback ofThermal shutdown in ON-state

• Diagnostic feedback of both channels works properly in case of inverse current

Protection Functions

• Undervoltage shutdown

• Overvoltage clamp

• Load current limitation

• Self limiting of fast thermal transients

• Thermal shutdown

• Protection against loss of ground and loss of VS

• Reverse battery protection with extemal resistor

• Electrostatic discharge protection
